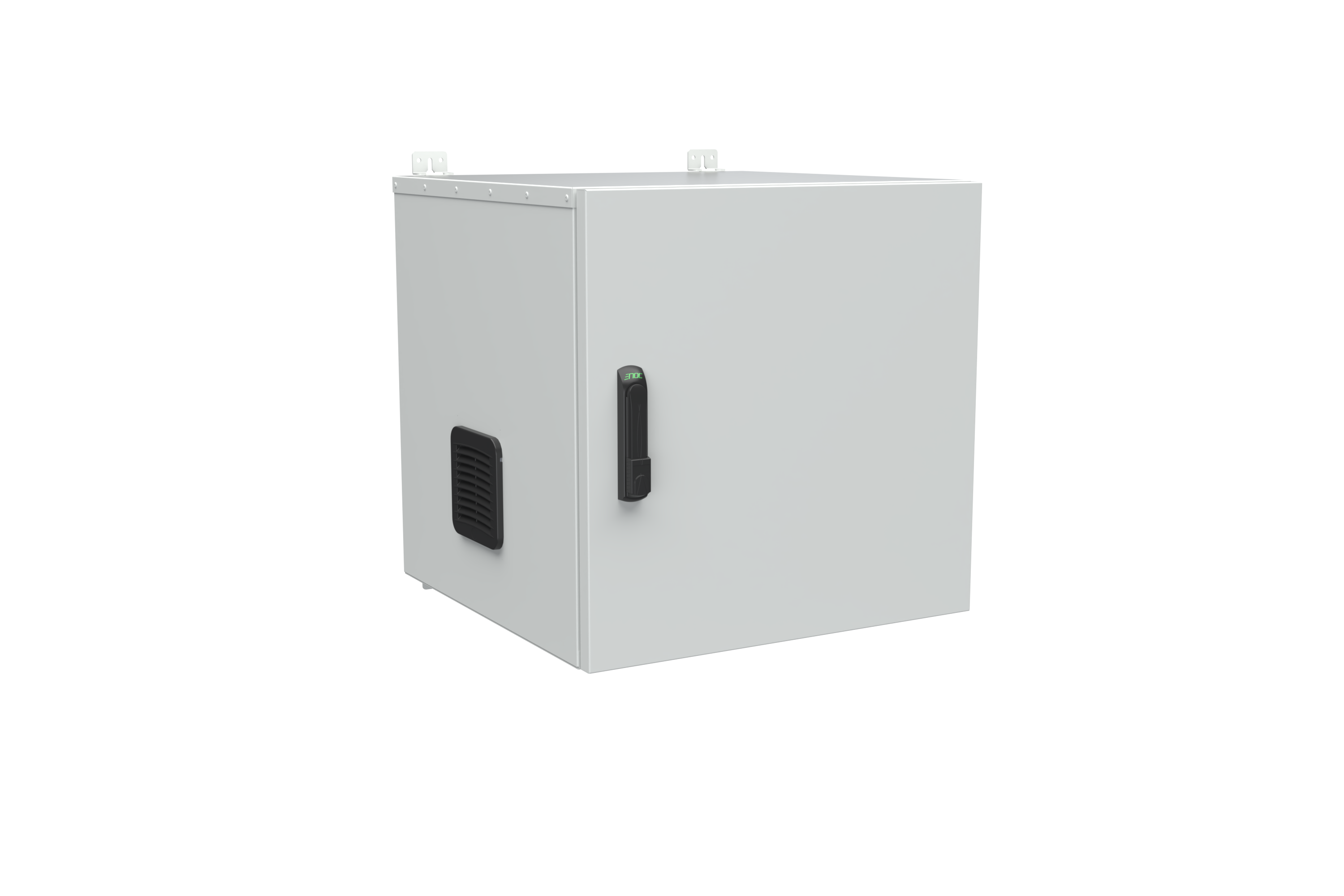

Ws4 12-66 OC
Art. no.
57709
EAN
7330701111587
Width
600 mm
Depth
600 mm
Height
625 mm
Colour
RAL 7035
IP class
55
Lock alternative
ASSA oval cylinder
All accessories for Ws4 12-66 OC
Technical information
- EN / IEC 60529 IP55 Ingress protection rate
- Made of bent Magnelis steel sheet Corrosivity class C5-I according to EN 12944-2
- Surface treatment: - Grey RAL 7035, structure surface
- Indoor and outdoor use
- Available unit sizes: 6 / 12 / 21 HU

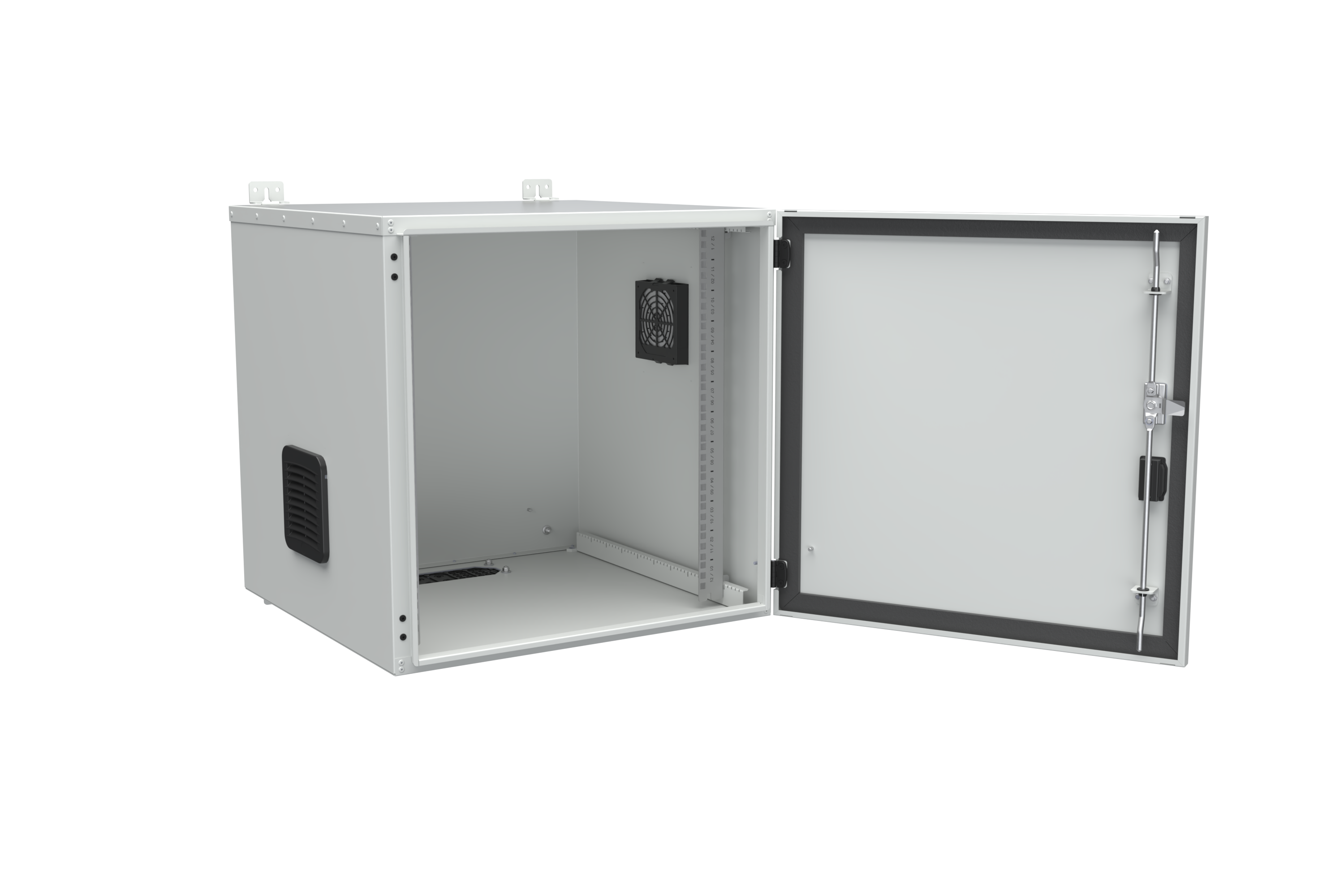

- 1 pair of 19” profiles, fully adjustable in depth
- Two different locking alternatives as standard:
Ws4 consists of a locking handle LS92 with safety cylinder C101.
Ws4 OC consists of a locking handle that fits ASSA / ABLOY / RUKO cylinder. - Up to 160° door opening angle
- Loading capacity: 100 kg

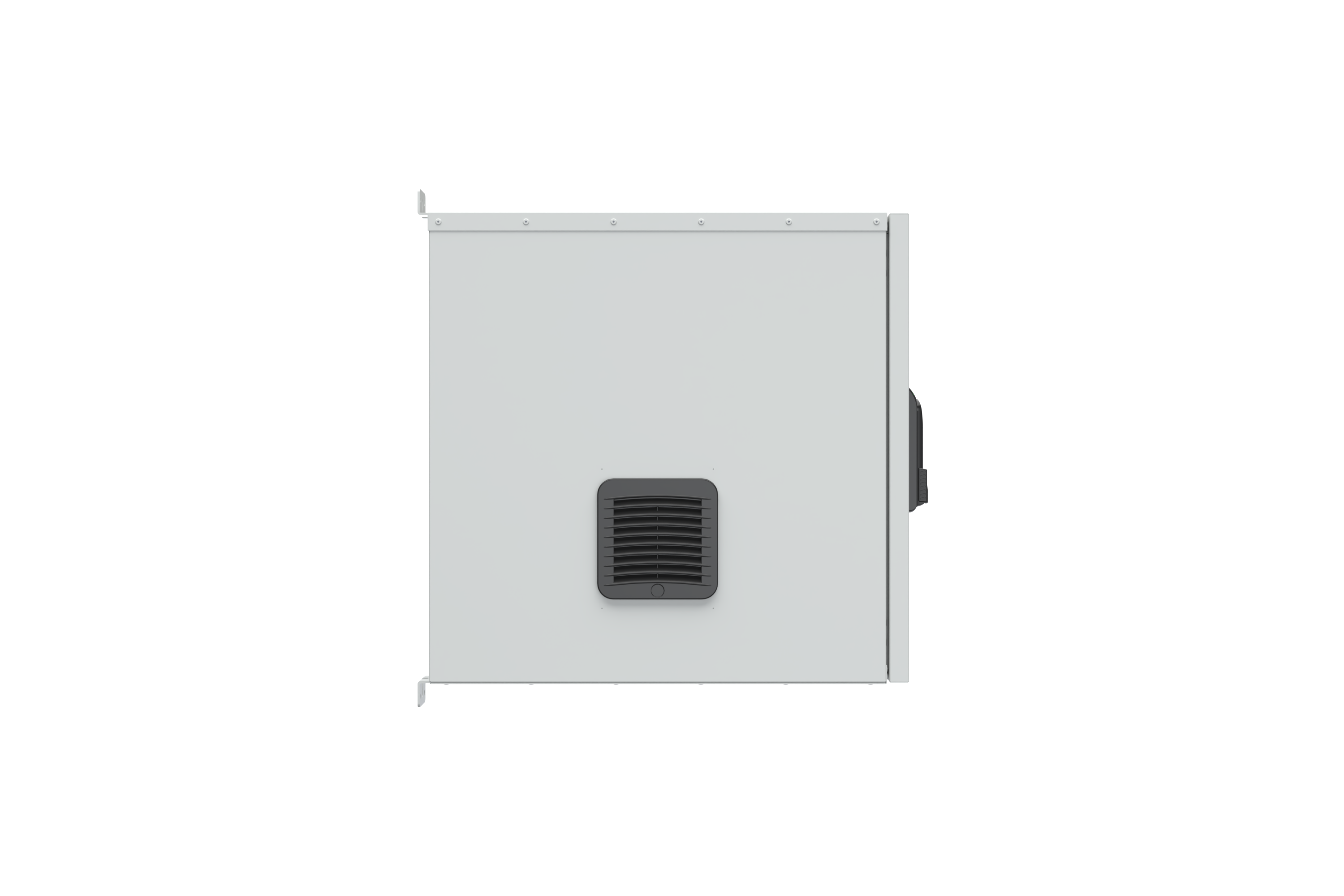

- Filter ventilation as standard on left and right side
- Easy cleaning and replacement of the filter mat (No need to get inside of the enclosure)

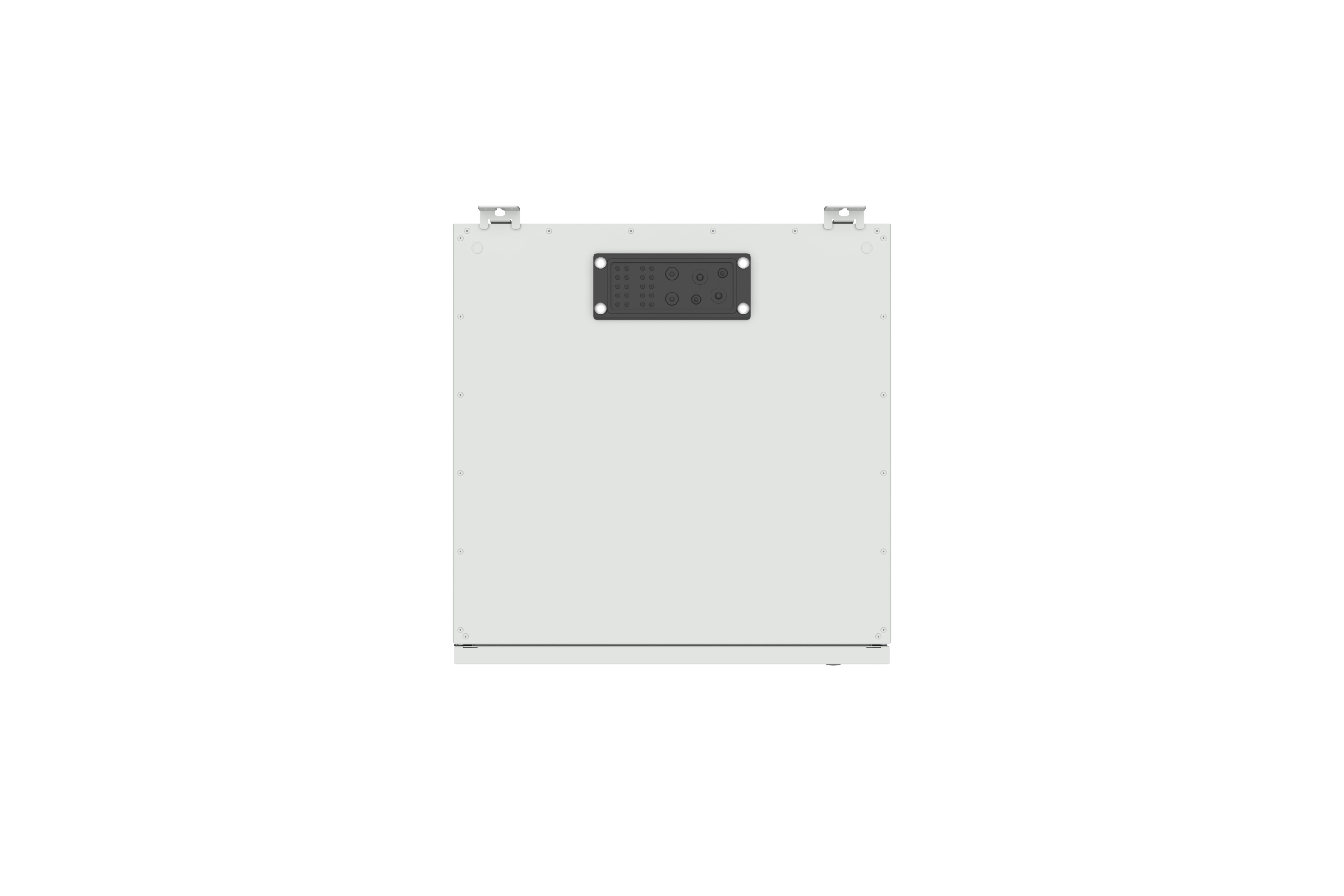

- Cable flange FL21 at the bottom for cable management
- Rotatable door to make it either right hang or left hang
- Wall brackets included (wall mounting screws not included)
- Additional pair of 19” profiles available as accessory
- Filter fan IP55 available as accessory
- Filter cover IP56 available as accessory
- Spare filter IP55 available as accessory
- Other locking solutions are available upon request
Art. no.
57709
EAN
7330701111587
Width
600 mm
Depth
600 mm
Height
625 mm
Colour
RAL 7035
Country of origin
Sweden
Product EAN
7330701111587
Customs tariff code
94032080
IP class
55
Lock alternative
ASSA oval cylinder
